Logging in Legacy Systems

Logging in Legacy Systems: Sending JDE Logs to Splunk and Graylog

Introduction

Why logging matters in legacy systems Challenges of working with predefined log file locations Overview of Splunk and Graylog as log management solutions What the post covers: Installation, setup, agents/sidecars, log analysis, and alerting

Architecture

graph TD;
    subgraph JDE Servers
        S1[Enterprise Server] -->|Log Generation| A1[Enterprise Log Folder]
        S2[Web Server] -->|Log Generation| A2[Web Log Folder]
        S3[BSSV Server] -->|Log Generation| A3[BSSV Log Folder]
        S4[AIS Server] -->|Log Generation| A4[AIS Log Folder]
        S5[Database Server] -->|Log Generation| A5[Database Log Folder]
    end

    A1 -->|Ingest Logs| B1[Log Forwarder/Agent] -->|Send Logs| B
    A2 -->|Ingest Logs| B1
    A3 -->|Ingest Logs| B1
    A4 -->|Ingest Logs| B1
    A5 -->|Ingest Logs| B1

    subgraph
        B[Splunk]
        B --> B2[Log Indexing]
        B2 --> B3[Log Search & Alerts]
    end

The Necessity of Log Analysis

Why log analysis is crucial for operations and development Common problems in legacy systems that logs help diagnose Alerting and monitoring for proactive issue resolution

Overview of Splunk and Graylog

Comparison of both tools Splunk: Proprietary, powerful search, machine learning, scalability Graylog: Open-source, flexible, cost-effective Use case suitability for JDE logs

Installing and Setting Up Splunk

Installation steps (self-hosted vs. cloud)

Install splunk in docker

https://github.com/jdedev/tophomelab/tree/main/docker/splunk

docker-compose.yml

services:
  splunk:
    image: ${SPLUNK_IMAGE:-splunk/splunk:latest}
    container_name: splunk
    restart: always
    environment:
      - SPLUNK_START_ARGS=--accept-license
      - SPLUNK_HEC_TOKEN=${SPLUNK_HEC_TOKEN}
      - SPLUNK_PASSWORD=${SPLUNK_PASSWORD}
    ports:
      - 8000:8000
      - 8088:8088
      - 8089:8089
    volumes:
      - "./splunk/etc:/opt/splunk/etc"
      - "./splunk/var:/opt/splunk/var"

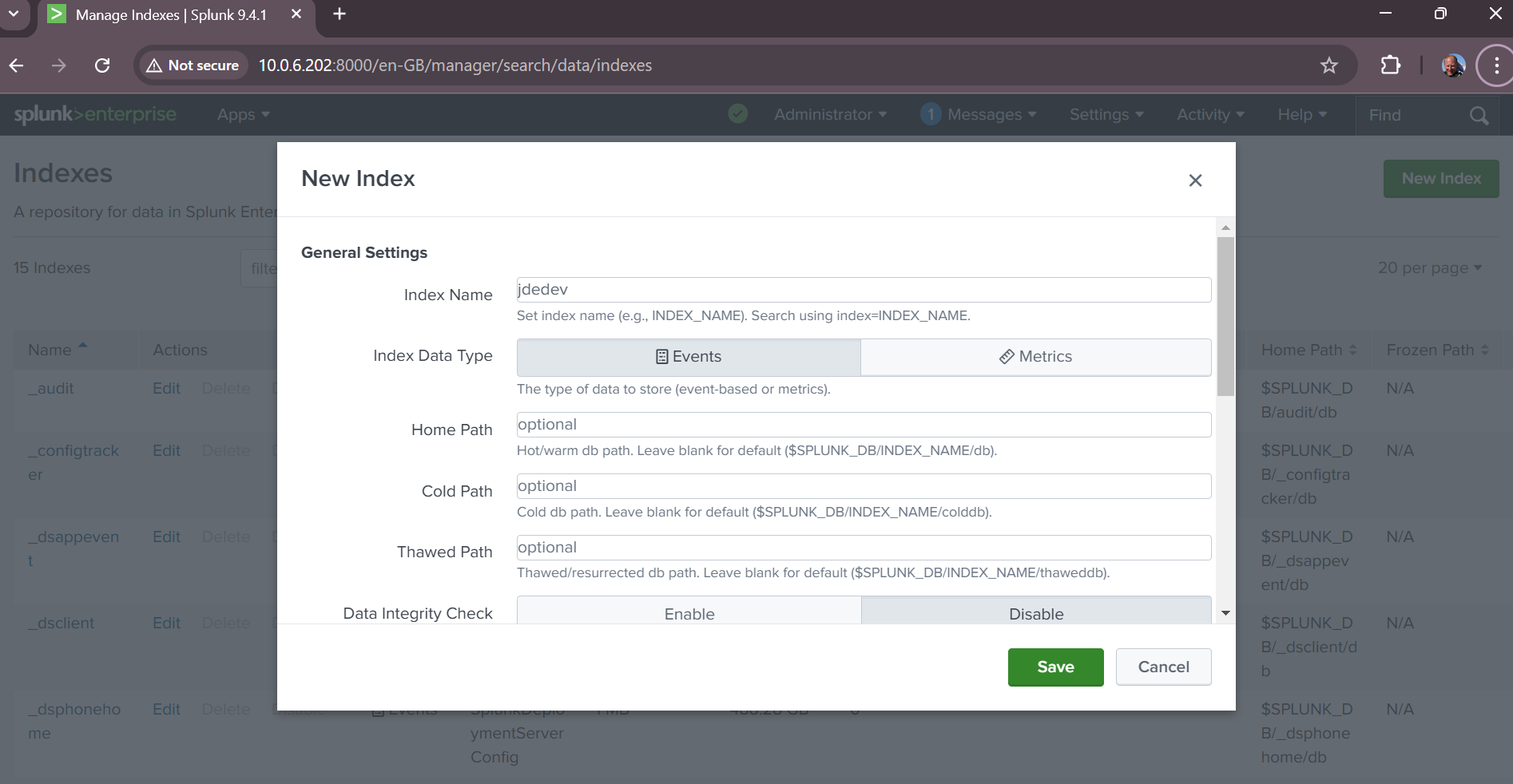

New Index

New Index

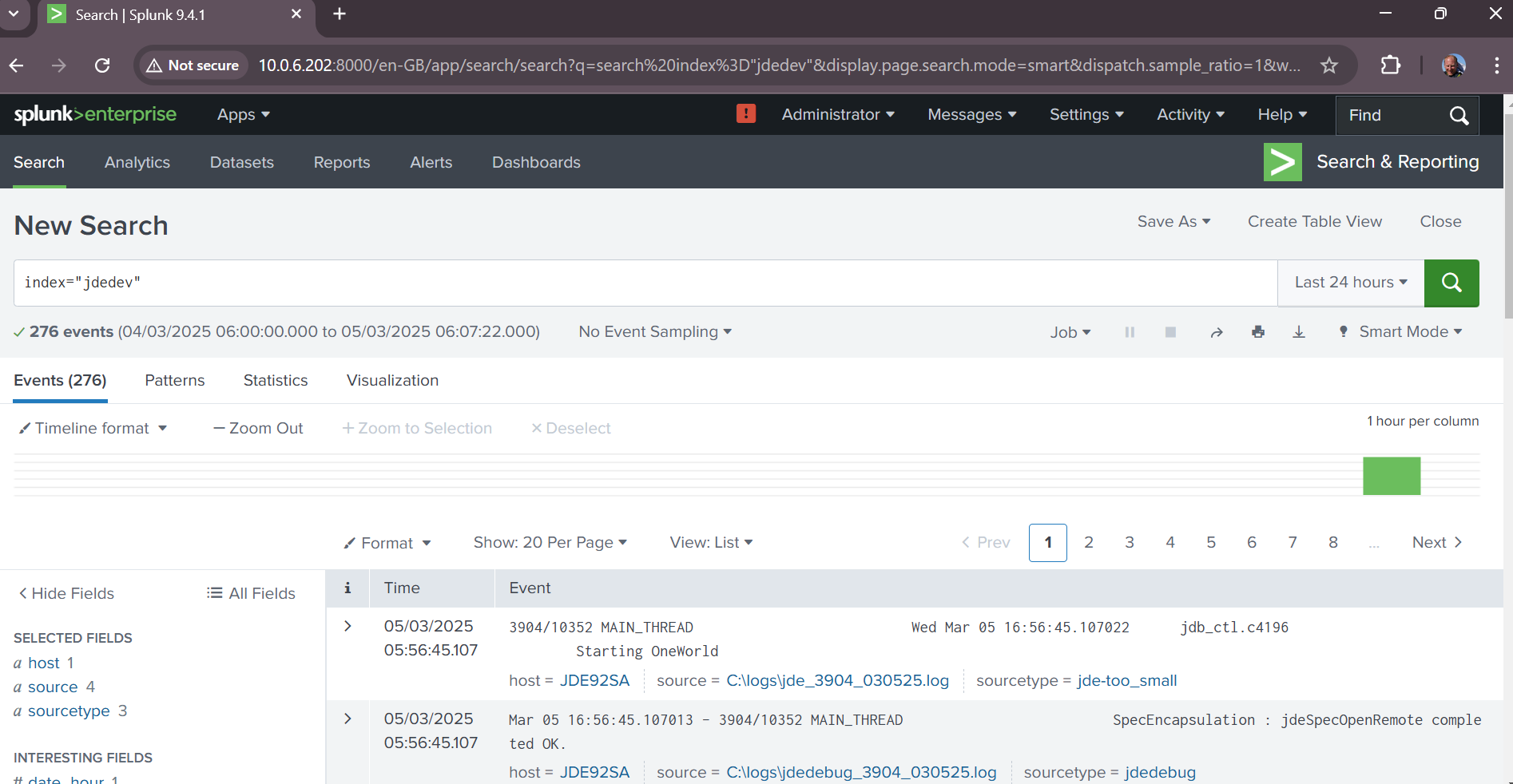

Search the new index

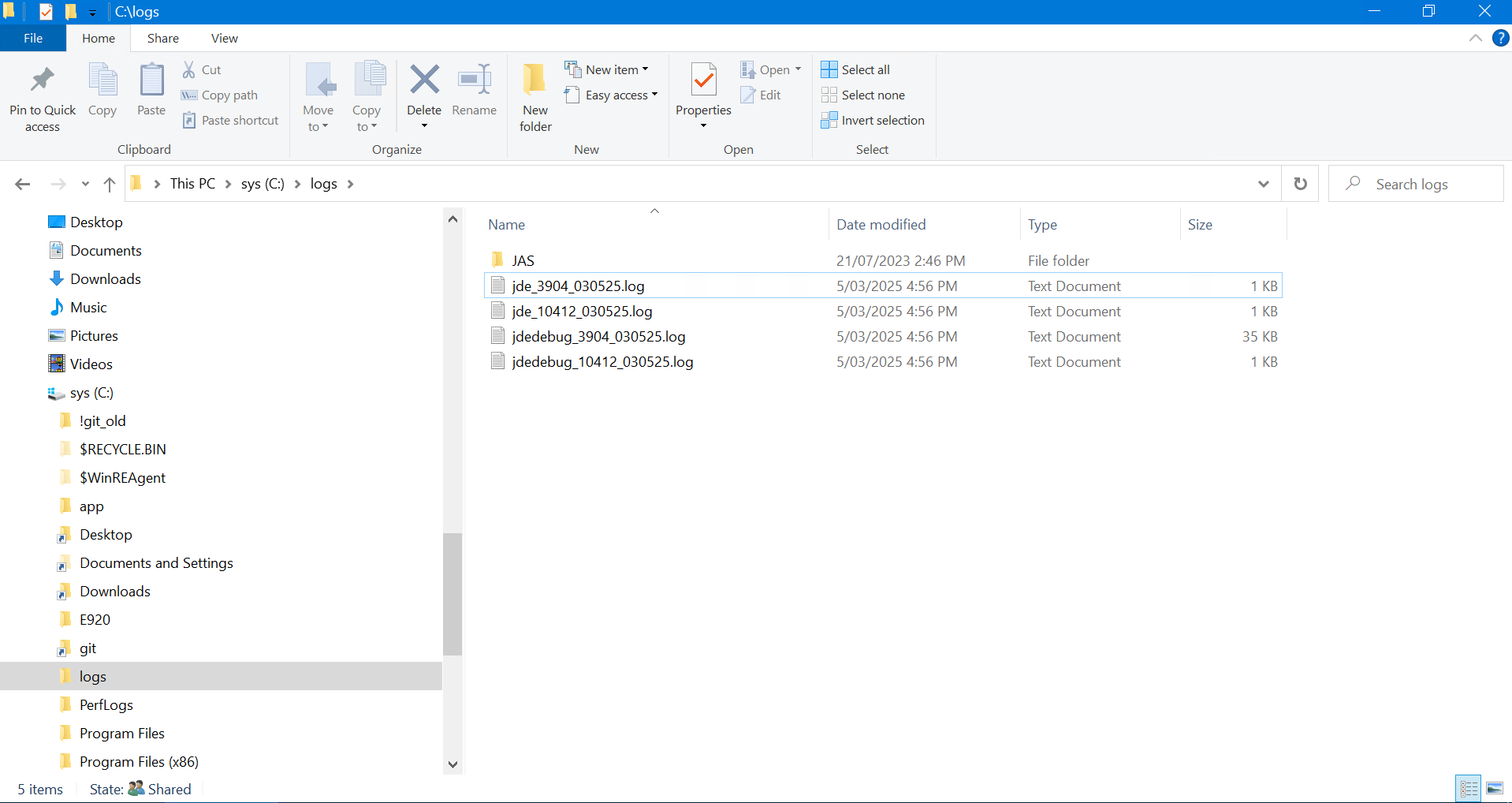

JDE Logs folder

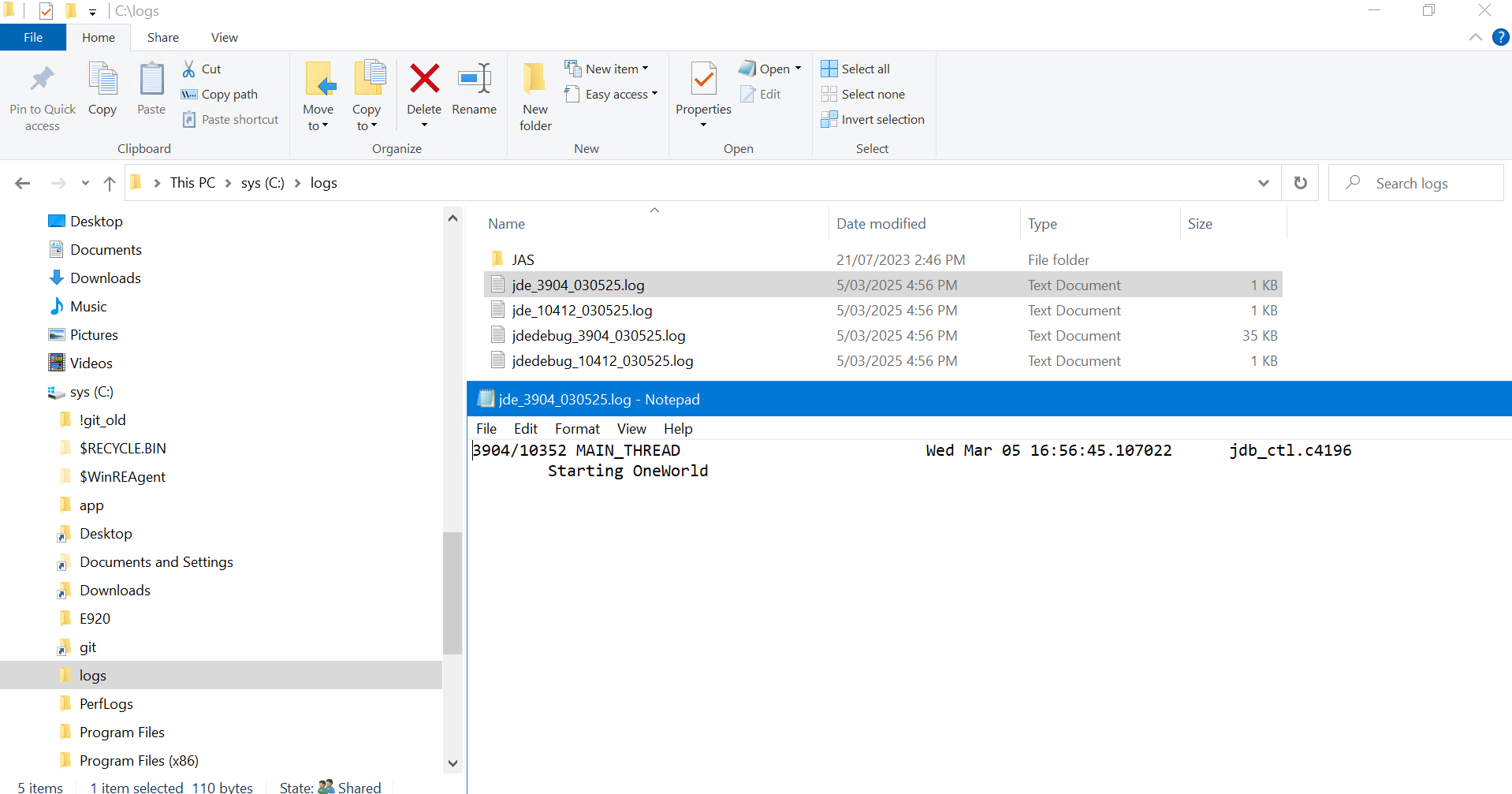

jde.log file contents

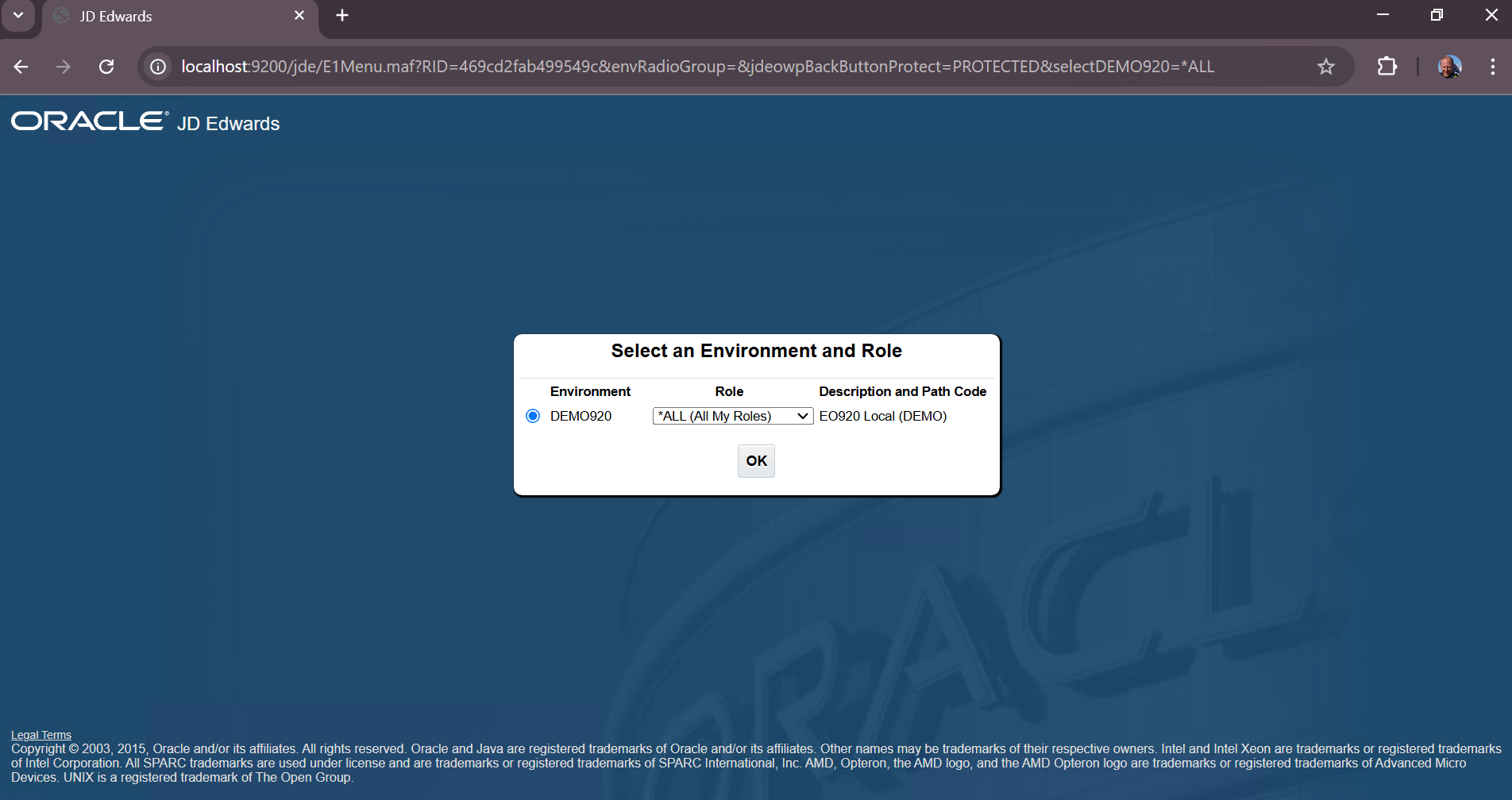

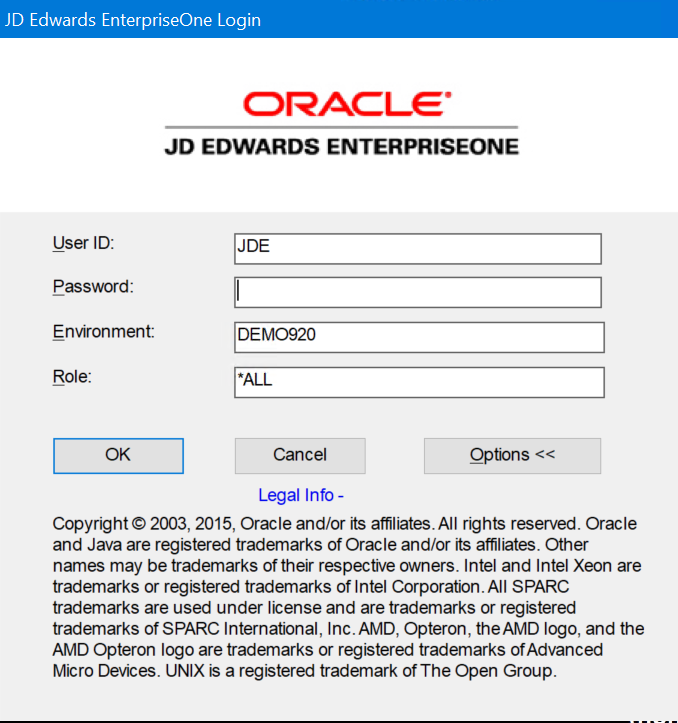

login to jde to generate some logs

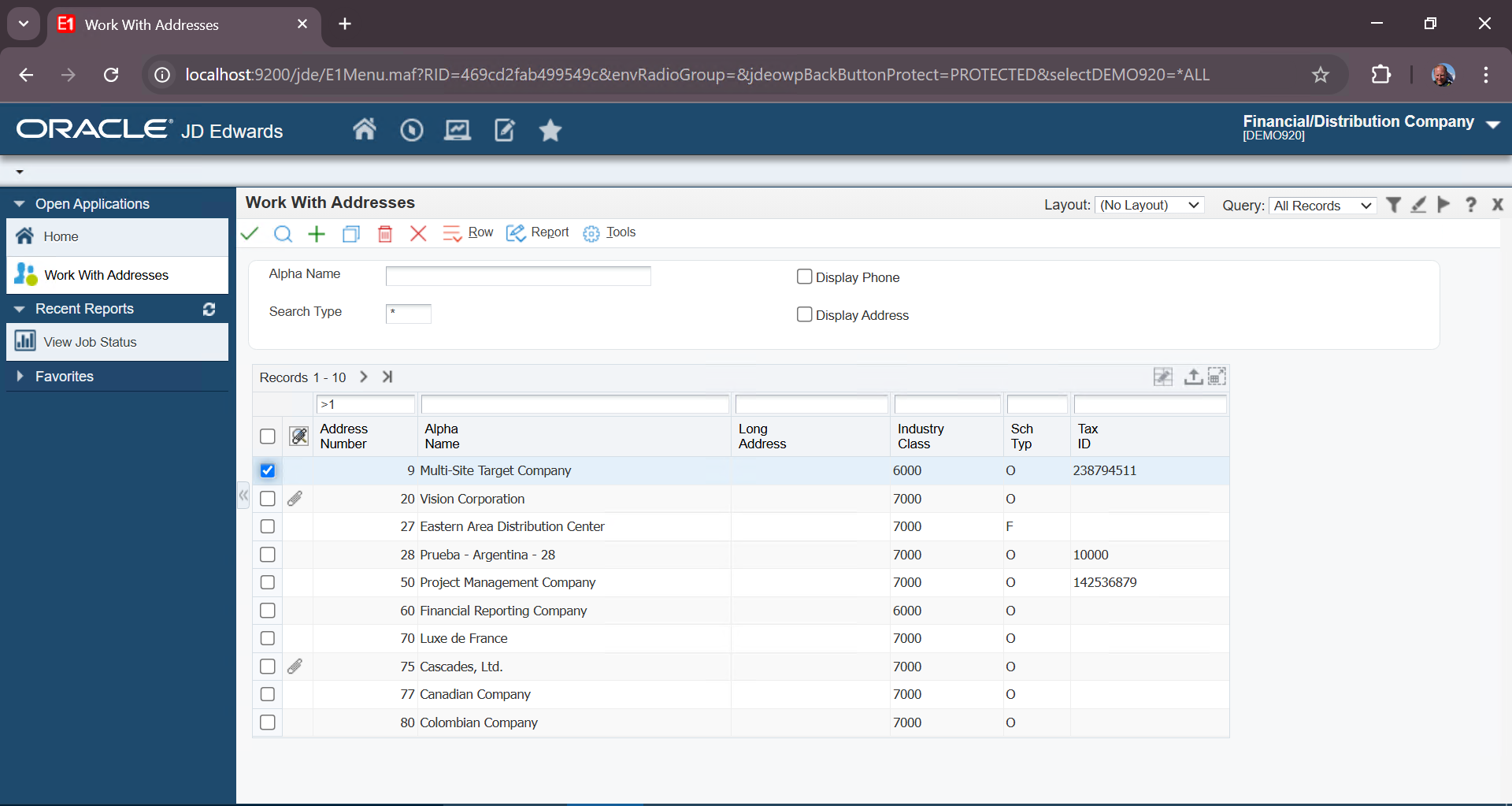

Find an address book record

Find an address book record

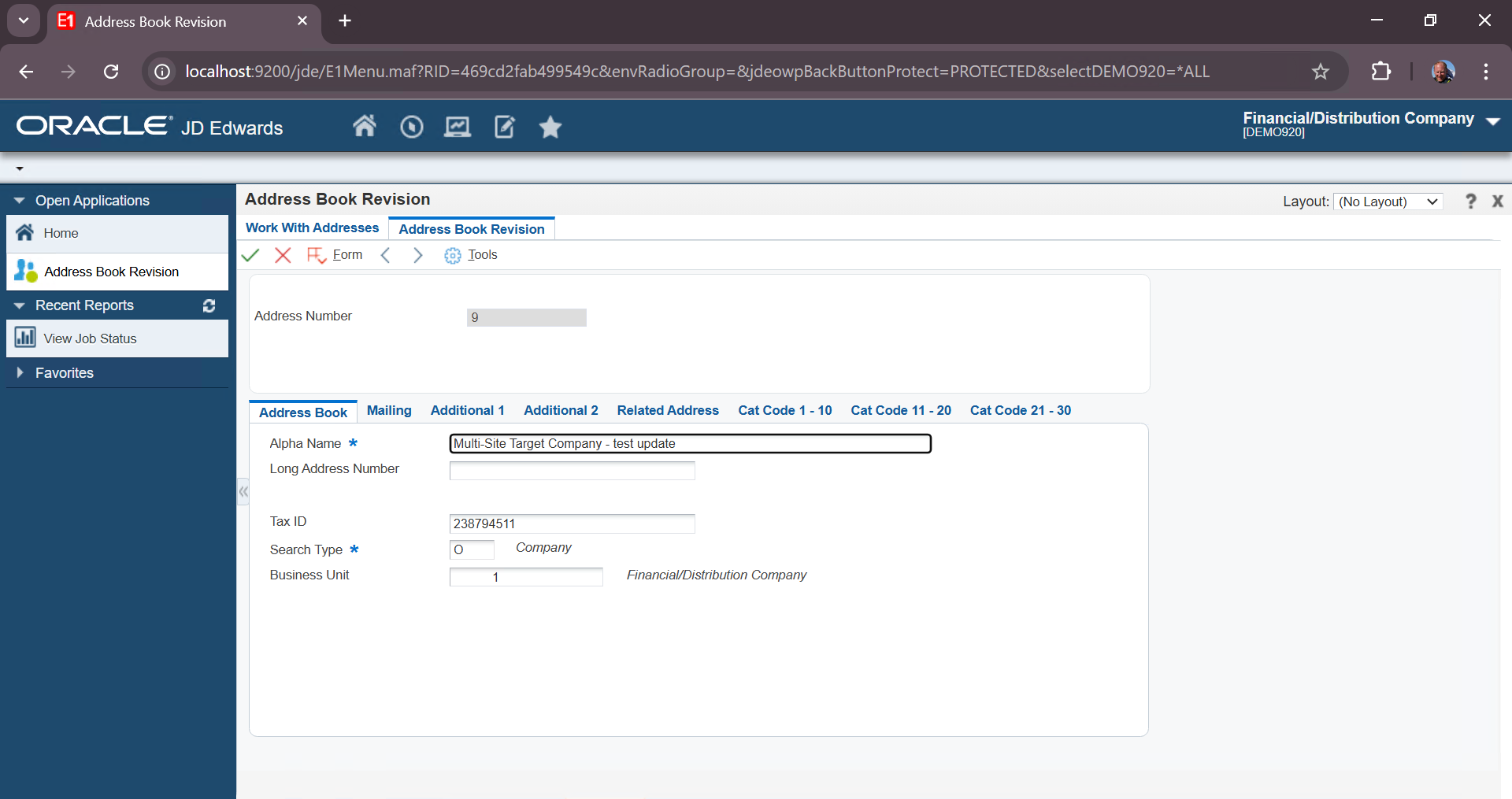

Edit address book record

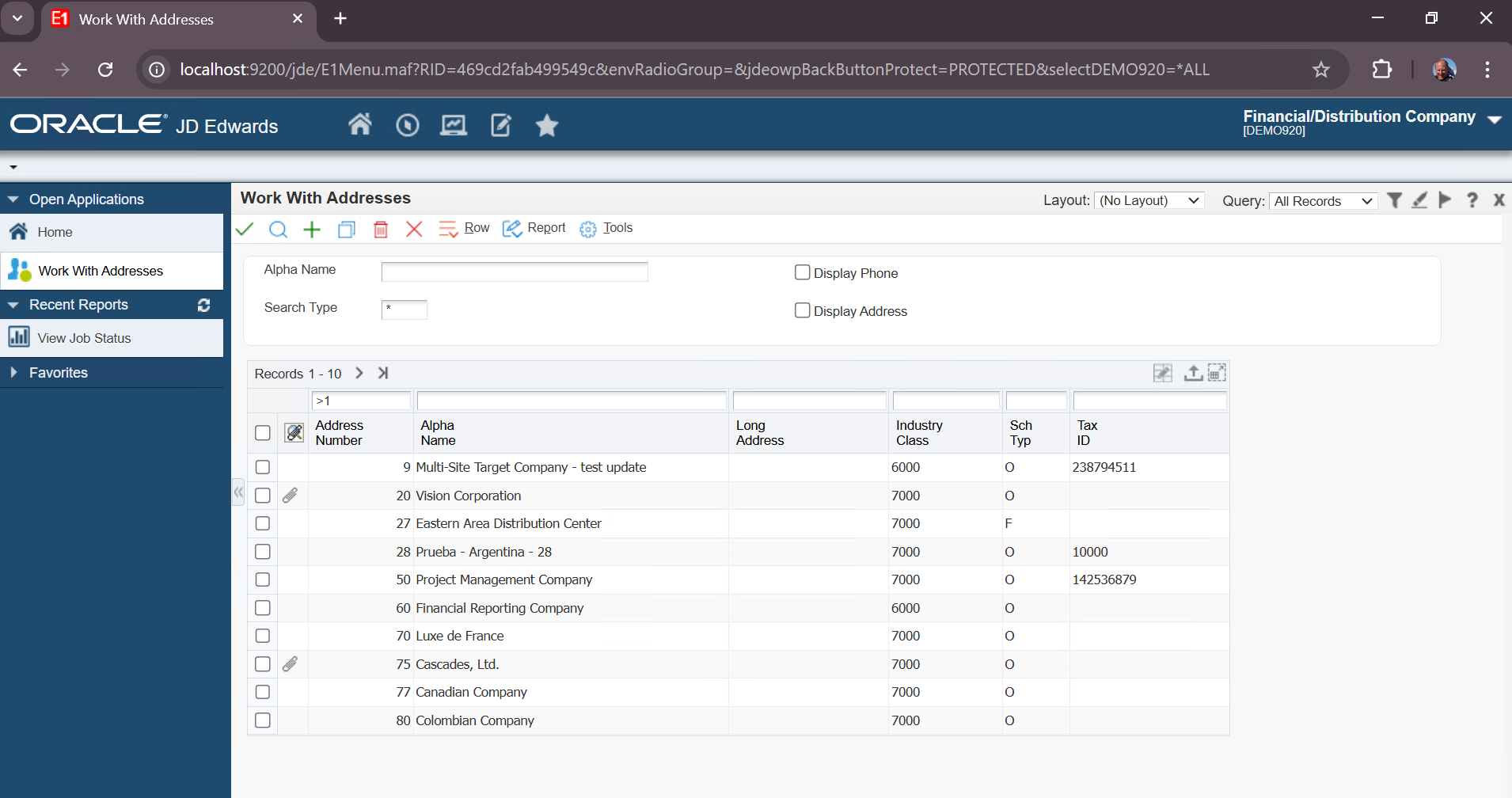

Address book record updated

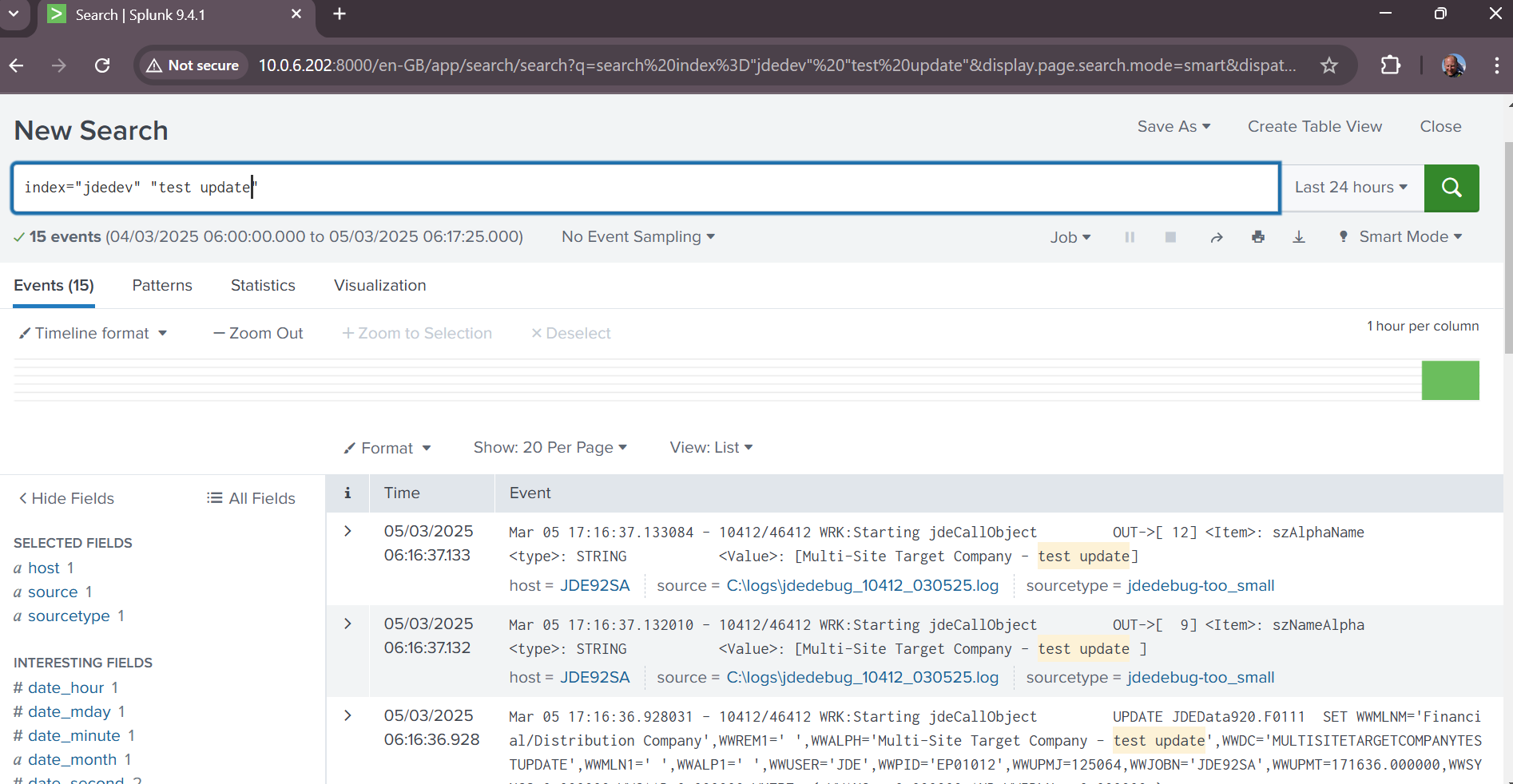

Locate log messages

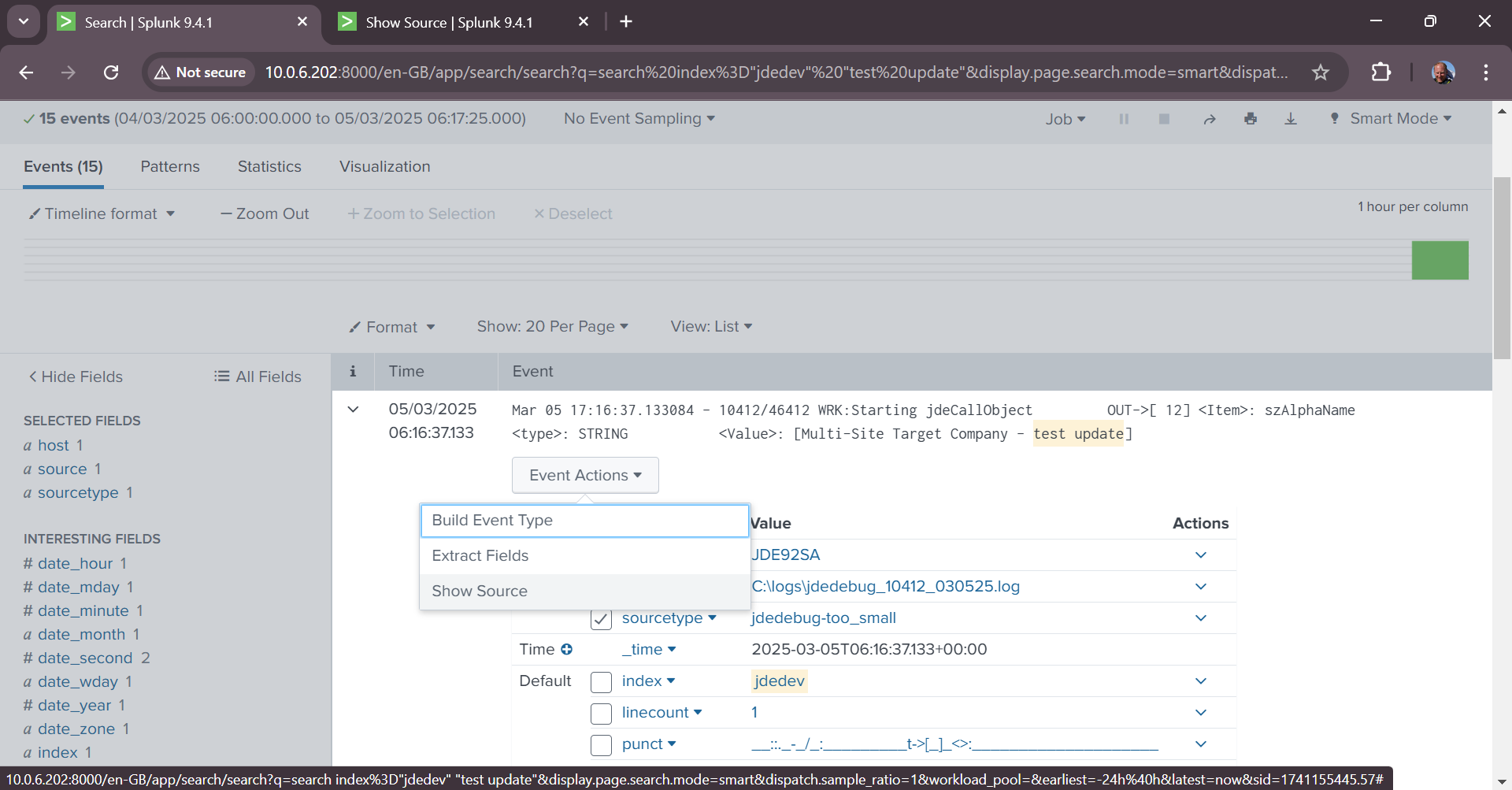

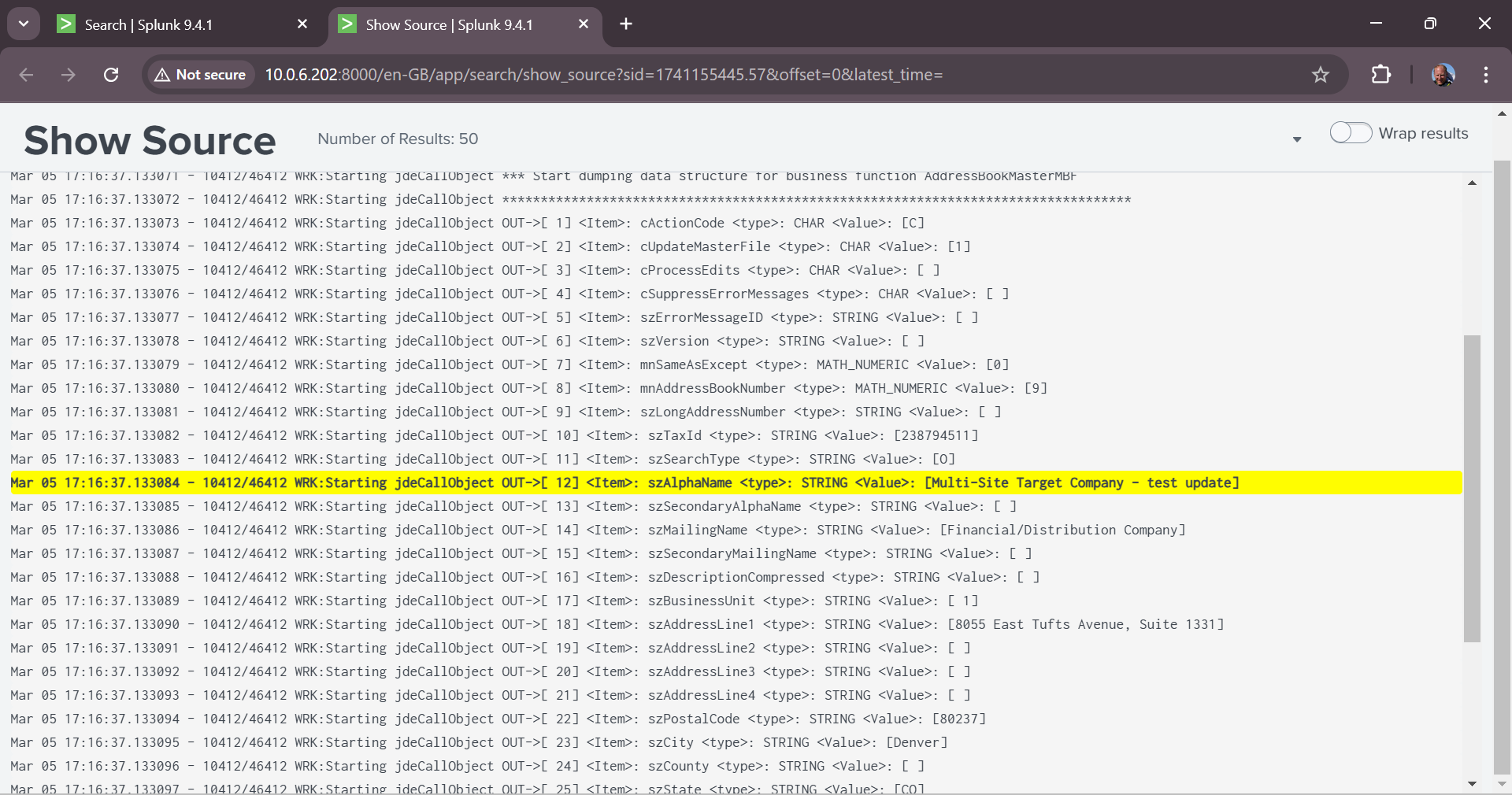

Review messages in the proximity

Messages - log file records

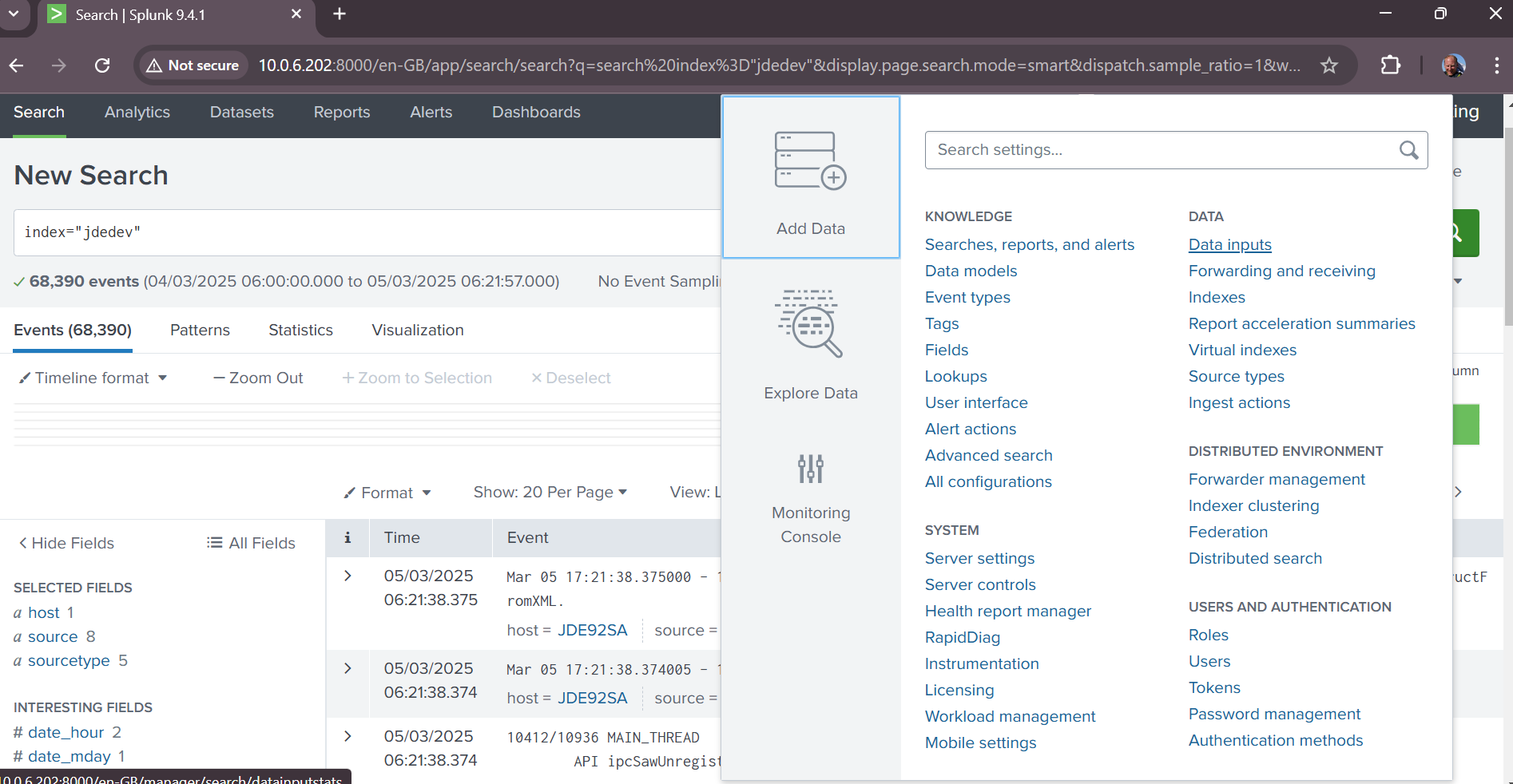

Add data - Add input

New Index

Configuring log inputs for text file ingestion

Setting up alerts and dashboards

Installing and Setting Up Graylog

Installation steps (self-hosted vs. cloud)

Install Graylog in docker

https://github.com/jdedev/tophomelab/tree/main/docker/graylog

networks:
  graynet:
    driver: bridge

services:
  # Graylog stores configuration in MongoDB
  mongo:
    image: mongo:6.0.5-jammy
    container_name: mongodb
    volumes:
      - "./mongo/mongo_data:/data/db"
    networks:
      - graynet
    restart: unless-stopped

  # The logs themselves are stored in Opensearch
  opensearch:
    image: opensearchproject/opensearch:2
    container_name: opensearch
    environment:
      - "OPENSEARCH_JAVA_OPTS=-Xms1g -Xmx1g"
      - "bootstrap.memory_lock=true"
      - "discovery.type=single-node"
      - "action.auto_create_index=false"
      - "plugins.security.ssl.http.enabled=false"
      - "plugins.security.disabled=true"
      - "OPENSEARCH_INITIAL_ADMIN_PASSWORD=SetPassw0rdL3ttersAndNumb3r5"
    volumes:
      - "./opensearch:/usr/share/opensearch/data"
    ulimits:
      memlock:
        soft: -1
        hard: -1
      nofile:
        soft: 65536
        hard: 65536
    ports:
      - 9200:9200/tcp
    networks:
      - graynet
    restart: unless-stopped

  graylog:
    image: graylog/graylog:6.1
    container_name: graylog
    environment:
      # CHANGE ME (must be at least 16 characters)!
      GRAYLOG_PASSWORD_SECRET: ${GRAYLOG_PASSWORD_SECRET}
      # Password: admin
      GRAYLOG_ROOT_PASSWORD_SHA2: ${GRAYLOG_ROOT_PASSWORD_SHA2}
      GRAYLOG_HTTP_BIND_ADDRESS: "0.0.0.0:9000"
      GRAYLOG_HTTP_EXTERNAL_URI: "http://localhost:9000/"
      GRAYLOG_ELASTICSEARCH_HOSTS: "http://opensearch:9200"
      GRAYLOG_MONGODB_URI: "mongodb://mongodb:27017/graylog"
      GRAYLOG_TIMEZONE: "America/Detroit"
      TZ: "America/Detroit"
      GRAYLOG_TRANSPORT_EMAIL_PROTOCOL: "smtp"
      GRAYLOG_TRANSPORT_EMAIL_WEB_INTERFACE_URL: "http://192.168.3.233:9000/"
      GRAYLOG_TRANSPORT_EMAIL_HOSTNAME: "outbound.mailhop.org"
      GRAYLOG_TRANSPORT_EMAIL_ENABLED: "true"
      GRAYLOG_TRANSPORT_EMAIL_PORT: "587"
      GRAYLOG_TRANSPORT_EMAIL_USE_AUTH: "true"
      GRAYLOG_TRANSPORT_EMAIL_AUTH_USERNAME: "xxxxx"
      GRAYLOG_TRANSPORT_EMAIL_AUTH_PASSWORD: "xxxxx"
      GRAYLOG_TRANSPORT_EMAIL_USE_TLS: "true"
      GRAYLOG_TRANSPORT_EMAIL_USE_SSL: "false"
      GRAYLOG_TRANSPORT_FROM_EMAIL: "[email protected]"
      GRAYLOG_TRANSPORT_SUBJECT_PREFIX: "[graylog]"

    entrypoint: /usr/bin/tini -- wait-for-it opensearch:9200 -- /docker-entrypoint.sh
    volumes:
      - "./graylog.conf:/usr/share/graylog/data/config/graylog.conf"
      - "./graylog/data:/usr/share/graylog/data"
    networks:
      - graynet
    restart: always
    depends_on:
      opensearch:
        condition: "service_started"
      mongo:
        condition: "service_started"
    ports:
      - 9000:9000/tcp   # Graylog web interface and REST API
      - 1514:1514/tcp   # Syslog
      - 1514:1514/udp   # Syslog
      - 12201:12201/tcp # GELF
      - 12201:12201/udp # GELF

Install and configure Filebeat

Filebeat Lightweight shipper for logs - pull logs from text files

https://www.elastic.co/downloads/beats/filebeat

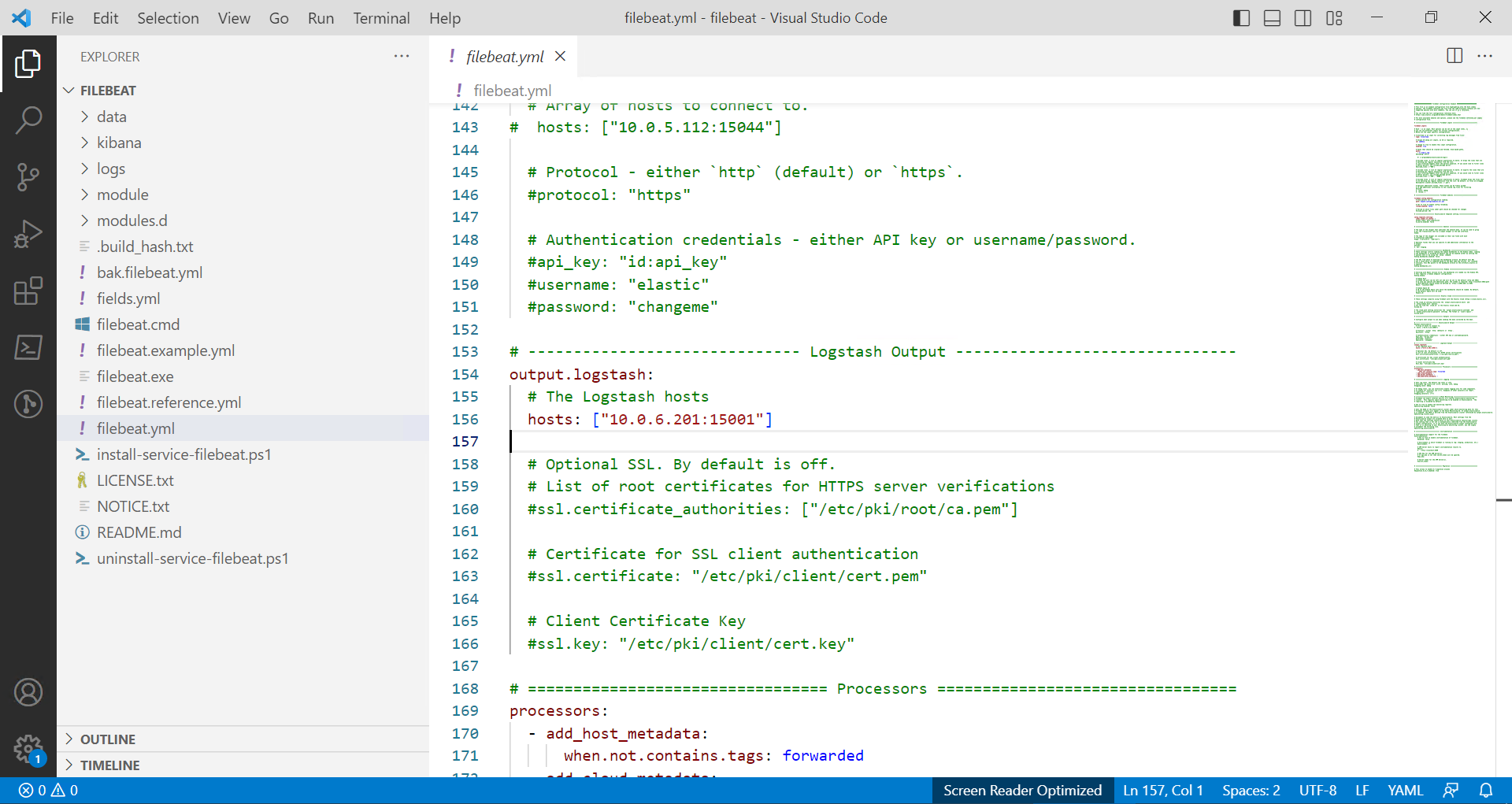

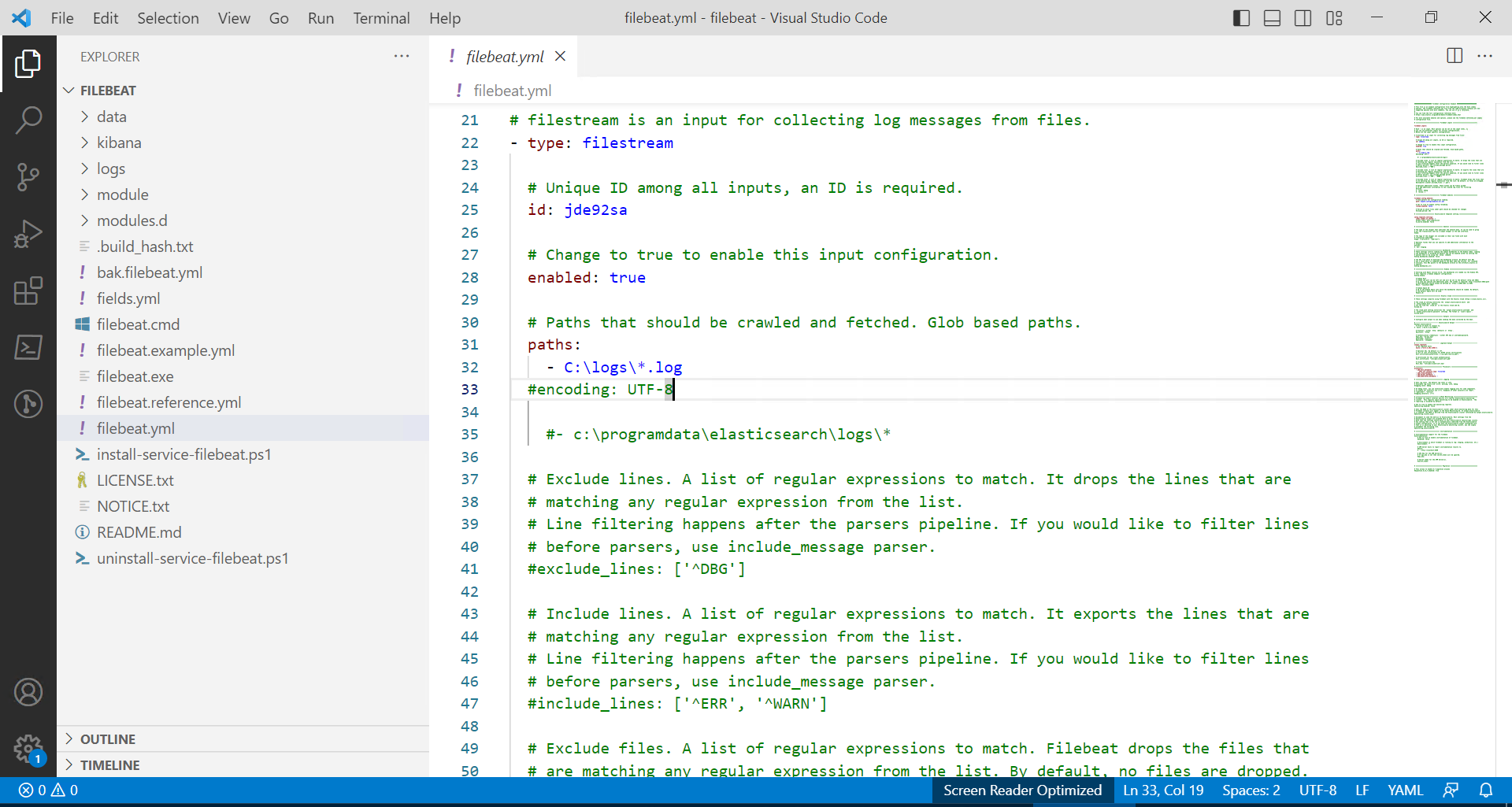

Configuring Filebeat

Setting up dashboards and alerts

Configuring Log Forwarding from JDE

Challenges of JDE logging and file-based log storage Using Splunk Universal Forwarder for Splunk Using Graylog Sidecar & Filebeat for Graylog Best practices for efficient log collection

Log Analysis: Improving Operations and Development

Searching logs efficiently Setting up alerts for proactive issue detection How logs help in troubleshooting and debugging Using logs to improve performance and security

Conclusion

Summary of findings Pros and cons of Splunk vs. Graylog for legacy logs Next steps: Automating log insights and further enhancements

file logs

.

misc

infra

domain

jde92sa.tophomelab.work

Hosts
- traefik.jde92sa.tophomelab.work : 10.0.6.203
- Services:
- traefik
- portainer
- cf-jde92sa
- graylog.jde92sa.tophomelab.work : 10.0.6.201
- graylog - splunk.jde92sa.tophomelab.work : 10.0.6.202
- splunk

Reference
- jde92sa : 10.0.5.90

splunk
    curl -k "https://localhost:8088/services/collector" \
    -H "Authorization: Splunk 9fbb05c6-0f85-46af-bc76-5fa07c3baec3" \
    -d '{"event": "Hello, world!", "sourcetype": "manual"}'


graylog
    echo -e '{"version": "1.1","host":"example.org","short_message":"Short message","full_message":"Backtrace here\n\nmore stuff","level":1,"_user_id":9001,"_some_info":"foo","_some_env_var":"bar"}\0' | nc -u -w 1 localhost 12201
